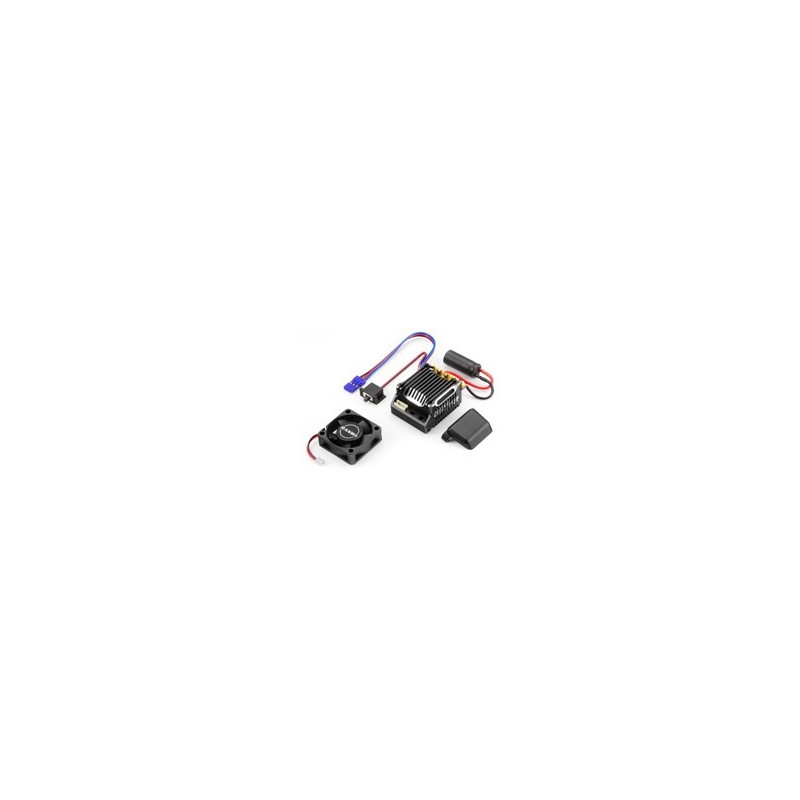

1 SUPER VORTEX Generation 2
$202.72
Tax included
[NEXT GENERATION (2nd Generation) MODEL from SUPER VORTEX ZERO]
●SSR-Compatible
●SSL-Compatible
●Compatible with Programming box
●Full Aluminum Case (Black Alumite Treatment)
●New Function Compatible with Code 10 for M12S & EXZES ZZ
●Cooling Duct improves heat dissipation
●Improved Telemetry Function
●Compatible with update of software by programming box
etc.
Security policy
Delivery policy
| Nominal Input Voltage |
3.7V - 7.4V |
Rated Current |
1000A/Phase at (Transistor Rating at 25℃) |
| Voltage drop | Dimensions |
32.0x36.8x20.5mm |
|
| Total Weight |
41.7g (w/o power capacitor) |
||
●Full Model Change of SUPER VORTEX.
●NEW CIRCUIT DESIGN INCREASE RATED CURRENT BY 35% COMPARED
WITH SUPER VORTEX ZERO (THE PREVIOUS MODEL).
●Compatible Brushless Motor: 3.5T or greater (Lipo 1 cell) / 4.5T or greater (Lipo 2cell)
●NEW FUNCTION WITH CODE 10 (SSL: Remote Transmitter Setting) FOR M12S & EXZES ZZ
●Compatible with PROGRAM BOX (Optional Item)
Easy Setting and Software Update can be available through PROGRAM BOX.
●DEFAULT PROGRAMMING MODE INCLUDING NEW FUNCTIONS
[CUT-OFF VOLTAGE]: Ensure that Cut-Off Voltage value you choose matches the battery type you're using.
[REVERSE]: Enable or Disable Reserve function.
[THERMAL PROTECTION]: ESC and motor over-heat protection.
[BOOST]
[THROTTLE PUNCH]: Adjust the punch when motor is started by throttle operation.
[NEUTRAL BRAKE / DRAG BRAKE RATE]: Change the braking effectiveness as the throttle trigger is returned to neutral.
[DRIVE FEEL]: Higher values increase the smoothness of the throttle in the forward and return to the neutral directions.
[NEUTRAL BRAKE FEEL / DRAG BRAKE FEEL]: Higher values increase the smoothness of the Neutral Brake function.
[BRAKE FEEL]: Higher values increase the smoothness of throttle in the brake and return to neutral directions.
[BOOST RATE / TIMING ADVANCE]: Higher values increase motor performance throughout the entire throttle range.
[TURBO]: Increase the Timing Advance at only the full throttle position by the percentage chosen.
[BOOST STARTING RPM]: Adjust the starting position of RPM at which the Boost Timing becomes active.
[BOOST ACCELERATION]: Increase the amount of boost rate per 1,000RPM.
[NEUTRAL DEAD BAND]: Adjust "PLAY" (Looseness) in Neutral range.
【SV-Gen.2/SSL FUNCTION MANUAL(DOWNLOAD)】
It's the additional detailed manual for SSL setting (Transmitter Remote Setting)【ESC FIRMWARE (DOWNLOAD)】
● SUPER VORTEX Gen2 Firmware・・・・・・G2102006(zip)</a>
※The above is the firmware for the first production lot of SUPER VORTEX Gen2 to
be able to change setting from PROGRAM BOX Gen2.
This firmware is only for SUPER VORTEX Gen2.
When you use our original Micro SD card (107A90581A) together with PROGRAM BOX Gen2,
The Micro SD card includes this ESC firmware.
However, if you use your own Micro SD card, please download the above firmware,
decompress the file of ".PRG" & "PRO" and save their file in root folder of Micro SD card.●SSL FUNCTION CONTENS
[SUPER VORTEX Generation2 User Manual Movie]
●Movie1: Overview
●Movie2: Transmitter's Setup and Calibration of throttle positions
●Movie3: How to change the setting by ESC Setup Button
●Movie4: How to change the setting by SSL (Transmitter's Remote Setting)
●Movie5: How to change the setting by Program Box
SW54413A
